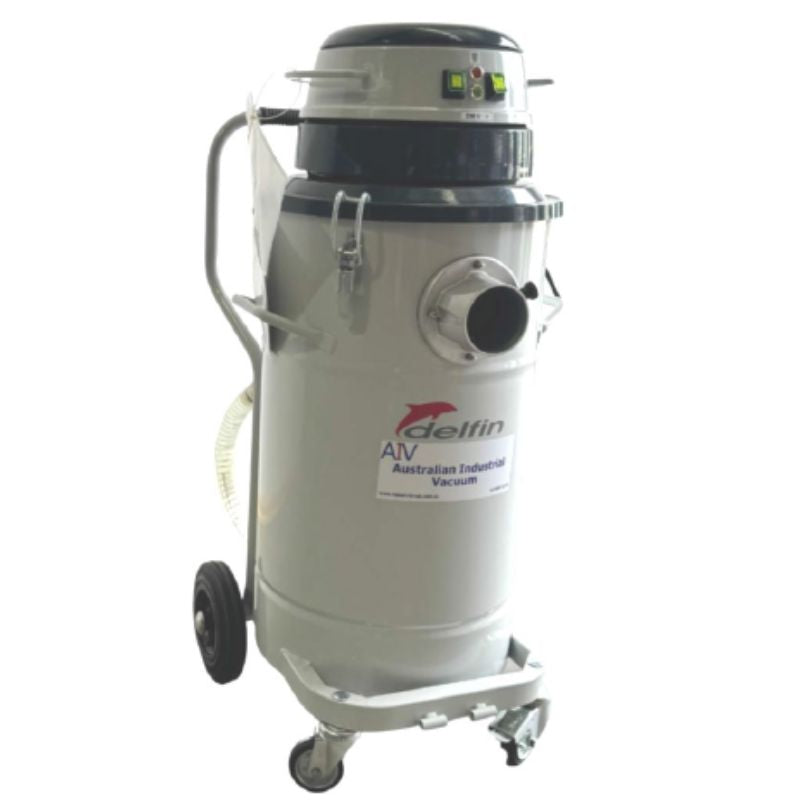

Delfin MTL 802 OIL Industrial Vacuum for Oil and Chips
Enter your postcode for a freight cost
Recover oil and clear chips from CNC machines in one pass
The Delfin MTL 802 OIL is a single phase industrial vacuum for machine shops that need to remove oil, coolant and metal chips from machine tools. Chips are caught in a sieve basket while the liquid drops into the tank below, so you can clean a machine sump and keep the oil for reuse instead of paying to dispose of a mixed waste stream.
What each feature does for your site
- Sieve basket grid for chips — chips are held in the basket and liquid falls into the tank, so oil and swarf are separated as you vacuum and chips lift out for disposal.
- 50 litre liquid capacity and 30 litre solids capacity — the tank takes a full sump clean on most machines, so you make fewer trips to empty between jobs.
- Liquids discharge valve — oil is drained from the tank through a valve, so recovered oil can be returned to the machine or a drum without tipping the unit.
- Mechanical float device — the float shuts off suction when the tank is full, so oil is not drawn into the motor.
- Polypropylene filter for liquids and Class L polyester filter — the filter stage is built for wet oily material, so suction holds up when the load is oil rather than dry dust.
- 2.3 kW motor, 2,500 mmH₂O and 360 m³/h — strong suction from a single phase supply, so it runs from a 10 A outlet and lifts heavy chips and viscous oil.
- Compact painted steel build, 40 kg — the unit is small and mobile, so one person can move it between machines on the shop floor.
Choose your configuration
- Painted Steel Tank (Standard) — suits general oil and coolant recovery.
- Stainless Steel AISI 304 Tank — for fluids that attack painted steel, or where you want a tank that is easier to keep clean.
- Add Oil and Chips Accessories Kit — the ø50 accessories kit that Delfin recommends for oil and chips work.
Technical specifications
- Voltage: 230 V, 50 Hz, single phase
- Power / current: 2.3 kW / 10 A
- Max vacuum: 2,500 mmH₂O
- Max airflow: 360 m³/h
- Suction inlet: 80 mm
- Liquid capacity: 50 litres
- Solids capacity: 30 litres
- Filter: polypropylene, 420 mm diameter
- Float device: mechanical
- Noise level: 76 dB(A) (EN ISO 3744)
- Dimensions: 53 x 59 x 106 cm
- Weight: 40 kg
Who it suits
CNC machine shops, metal fabricators and maintenance teams who clean machine tool sumps and need to separate chips from oil and emulsions for reuse. For a larger tank and an electric float switch, see the Delfin DM 40 OIL.
Frequently asked questions
How does it separate oil from chips?
Chips are collected in a sieve basket inside the tank and the liquid falls through to the tank below. You lift the basket out to dispose of the chips and drain the oil through the discharge valve.
Can I reuse the recovered oil?
Delfin designs the oil and chips range so the separated liquid can go back into the machine. Check with your machine manufacturer that the oil or coolant is suitable for reuse before you do.
What is the difference between the MTL 802 OIL and the DM 40 OIL?
The MTL 802 OIL is the smaller unit with a 50 litre liquid tank, a mechanical float and a 2.3 kW motor. The DM 40 OIL has a 60 litre liquid tank, an electric float, a 3.45 kW motor and higher airflow.
When should I choose the stainless steel tank?
Choose stainless steel if your coolant or cleaning fluids can corrode painted steel, or if you want a tank that is easier to wipe clean between fluids.
What power supply does it need?
It runs on 230 V single phase and draws 10 A, so it plugs into a standard 10 A outlet.
How much does freight cost?
At 40 kg this machine ships as freight. Send us your delivery postcode and we will quote it.
