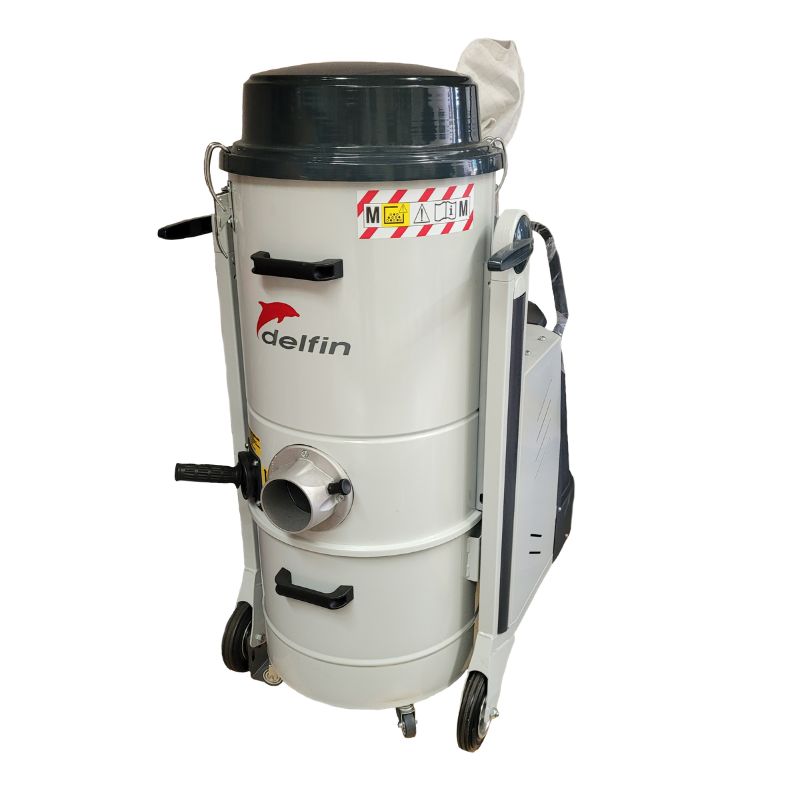

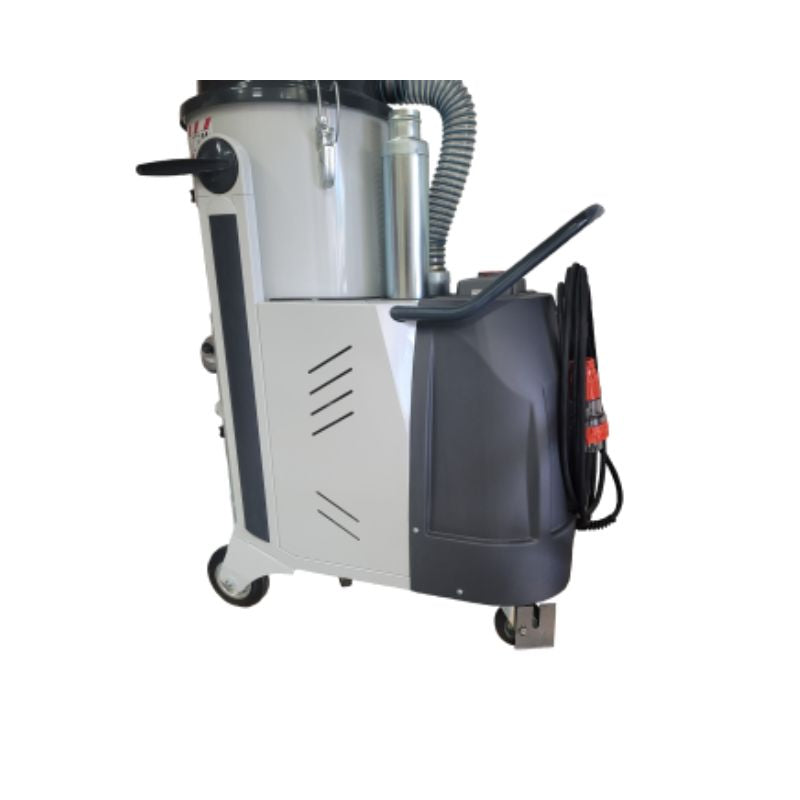

Delfin MTL4535 Industrial Three Phase Vacuum Cleaner
Why Buy From Us
Industrial Vacuum Cleaner Built for Continuous Dust & Powder Extraction
The Delfin Mistral 4535 is a three-phase industrial vacuum cleaner built on the compact Mistral platform, with a 4kW turbine rated for 24/7 operation. It's designed for continuous, heavy-duty extraction of dust, powder, and solids in demanding production environments.
Its complete steel construction and side channel blower motor need virtually zero maintenance, so it can run continuous shifts without unplanned downtime. The integrated filter cleaning system keeps suction consistent over long operating periods, so output doesn't drop off mid-shift. It's customisable with Class M, Class H (HEPA/Absolute), NOMEX high-temperature, and PTFE filters, so it can be configured for anything from standard industrial dust through to fine hazardous particulate. At 69 dB(A) and with optional full stainless steel AISI 304 or 316 construction, it's suited to production lines and pharmaceutical laboratories alike.
Key Features:
- 4kW Side Channel Blower Motor — needs virtually zero maintenance, so it can run 24/7 without unplanned downtime eating into production schedules
- Compact & Mobile Design — fits industrial-grade suction into a smaller footprint, so it can be positioned in tighter production or lab spaces without sacrificing performance
- Complete Steel Construction — built to withstand heavy industrial use, so it holds up under continuous shift work without premature wear

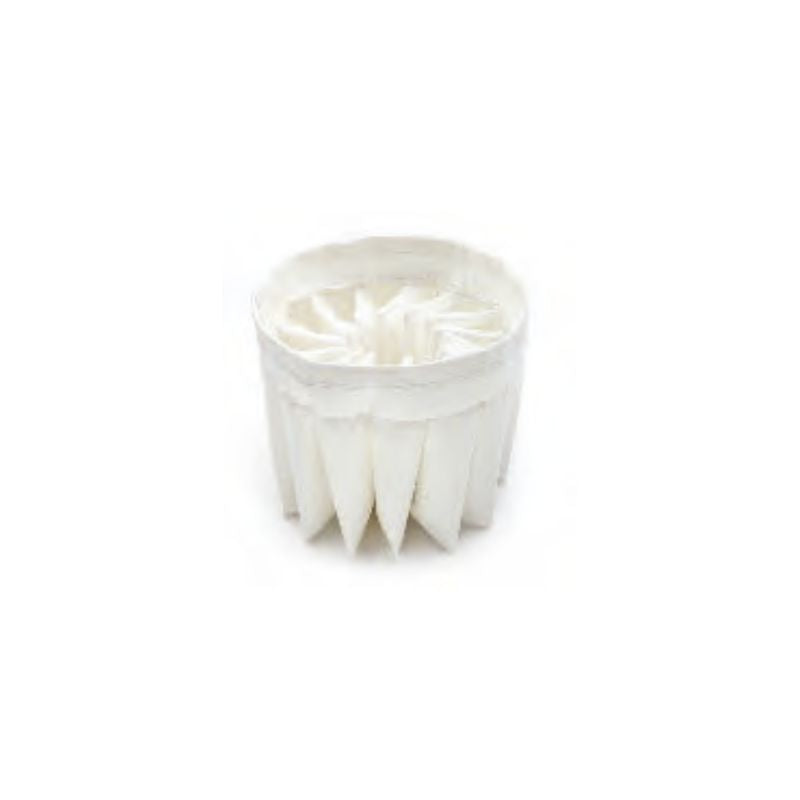

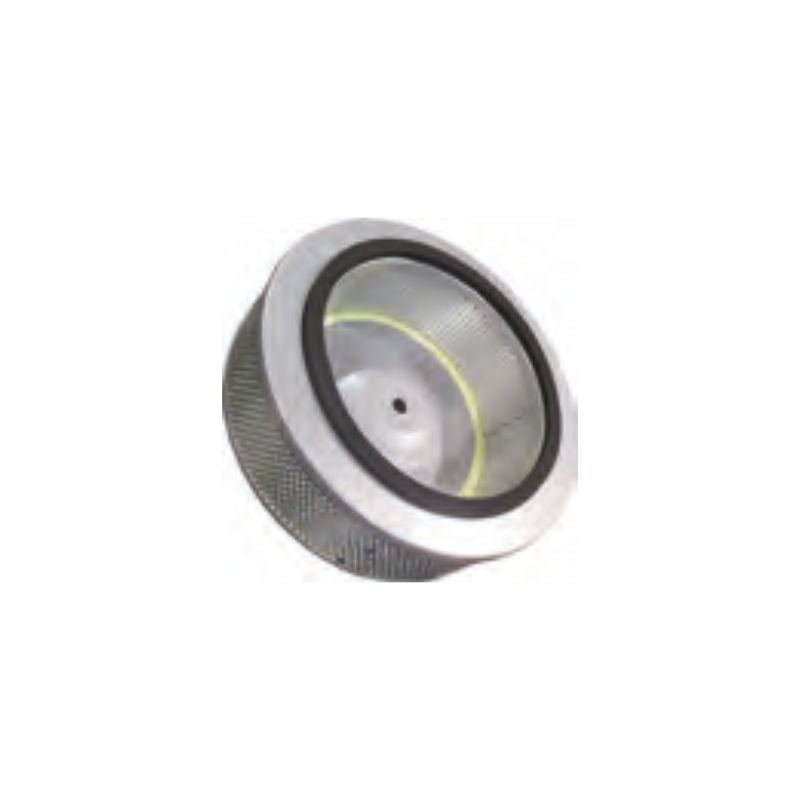

- Highly Configurable Filtration — compatible with Class M, Class H (HEPA/Absolute), NOMEX (up to 250°C), and PTFE filters, so one unit can be matched to the specific dust or particulate hazard on site
- Integrated Filter Cleaning System — maintains suction performance over extended runs, so operators aren't stopping to manually clear filters mid-shift

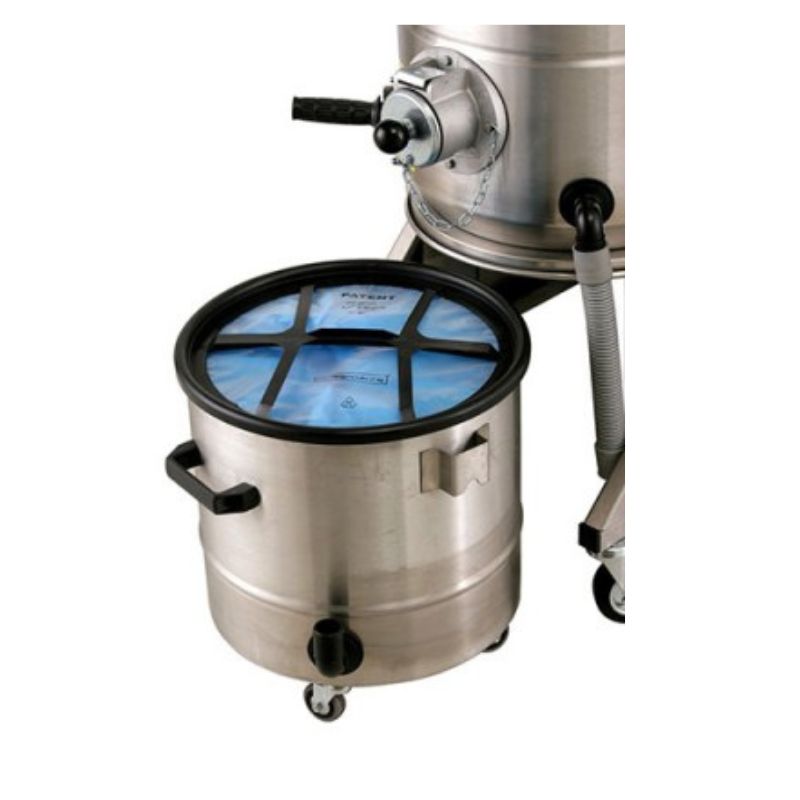

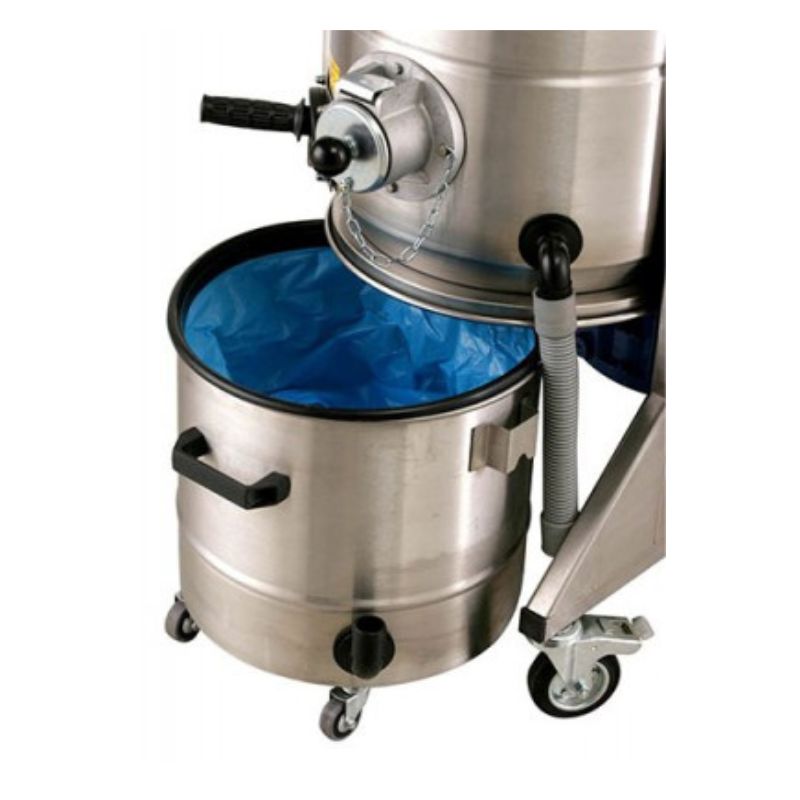

- Roll-Out Container Discharge System — makes waste removal a simple pull-and-empty task, so disposal doesn't require extra tools or downtime
- Low Noise Level — 69 dB(A) — quiet enough for lab and pharmaceutical settings, so it can run alongside sensitive processes without disruption
- IP55 Electrical Protection — sealed against dust ingress and water jets, so it can be used and washed down in demanding industrial areas without electrical risk

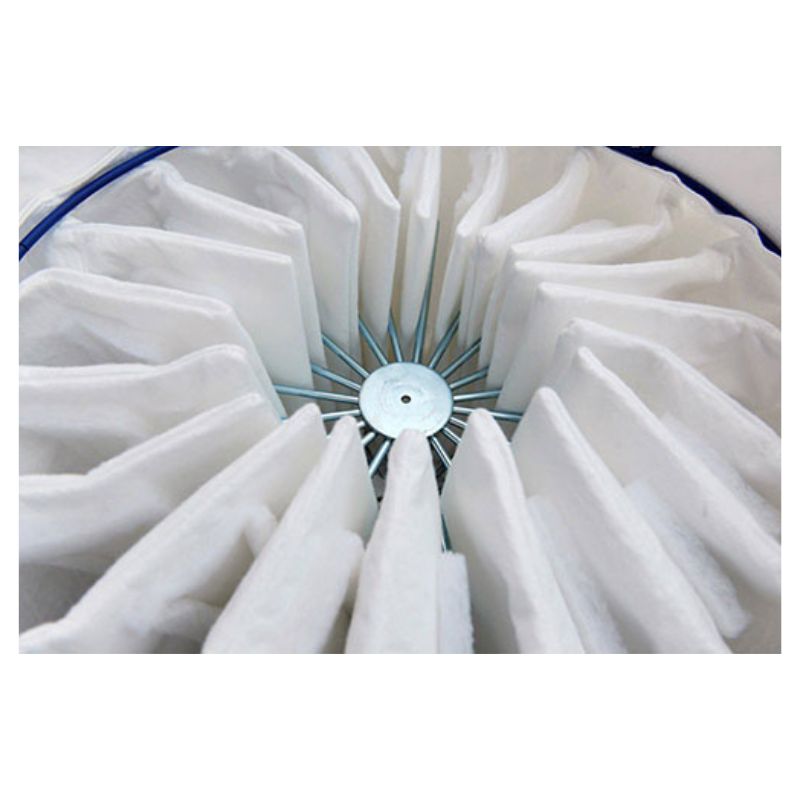

- 20,000 cm² Star Filter Surface — gives a large filtration area for its size, so particulate capture stays effective over longer runs between services
- Suitable for Continuous Duty — engineered for uninterrupted operation, so it can be left running across full production shifts

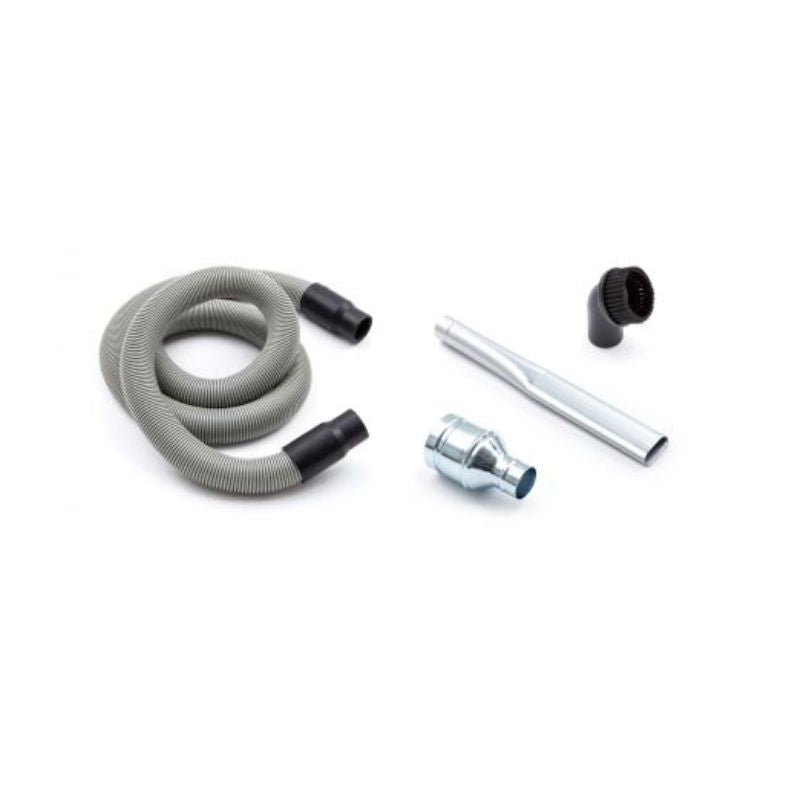

- Accessory Kit Included as Standard — comes ready to work out of the box, so there's no separate order needed to get started
Technical Specifications:
- Model: MTL4535
- Power Supply: 400V / 50Hz (Three Phase)
- Motor Power: 4kW
- Electrical Protection: IP55
- Max Waterlift: 3,200 mmH₂O
- Max Airflow: 450 m³/h
- Suction Inlet: 80mm
- Noise Level: 69 dB(A) (EN ISO 3744)
- Filter Type: Star
- Filter Surface: 20,000 cm² / 420mm diameter
- Filter Material: Polyester — Class L efficiency (IEC 60335-2-69)
- Air Load on Filter: 210 m³/m²/h
- Cleaning System: Manual
- Discharge System: Roll-out container
- Tank Capacity: 45 litres
- Dimensions (L x W x H): 100 x 55 x 125 cm
- Weight: 90kg
Downloads:
Who Is This For?
Production managers, maintenance teams, and facility operators across food processing, pharmaceutical manufacturing, chemical processing, textile production, electronics, packaging, and boiler maintenance who need a compact, highly configurable industrial vacuum for continuous-duty extraction of dust, powder, and solids.
FAQs
What filter options are available for the MTL4535?
The MTL4535 can be fitted with Class M, Class H (HEPA/Absolute), NOMEX high-temperature filters (up to 250°C), or PTFE filters, so it can be configured for standard industrial dust or fine hazardous particulate depending on your application.
Can the MTL4535 run continuously across full shifts?
Yes. It's rated for 24/7 continuous duty, with a maintenance-free side channel blower motor and an integrated filter cleaning system that keeps suction consistent over long operating periods.
Is the MTL4535 suitable for hazardous or fine dust environments?
With Class H (HEPA/Absolute) or PTFE filtration fitted, it can be configured for fine hazardous particulate. IP55 electrical protection also means it's sealed against dust ingress and water jets for demanding industrial use.
How is waste emptied from the unit?
The MTL4535 uses a roll-out container discharge system, so waste can be pulled out and emptied without extra tools or extended downtime.
How noisy is the MTL4535 during operation?
It runs at 69 dB(A) (EN ISO 3744), quiet enough to operate in laboratory and pharmaceutical production environments without disrupting nearby processes.
