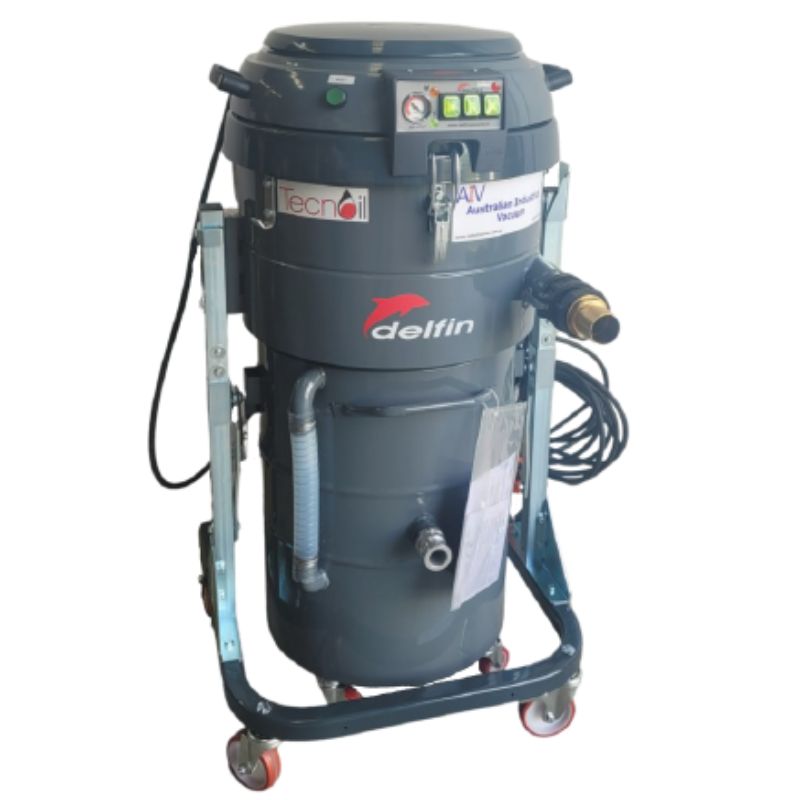

Delfin TC100 Tecnoil Oil and Chips Industrial Vacuum with Pump front view on blank white background.

Delfin TC100 Tecnoil Oil and Chips Industrial Vacuum with Pump

SKU TC100MP-001
$9,583.20
Cartridge
Accessories

Notify me when back in stock

Enter your postcode for a freight cost

Empty oil from the machine while you keep vacuuming

The Delfin TC100 is a single phase Tecnoil vacuum for machine shops that clean oil, coolant and metal chips from CNC machines. Chips are caught in a sieve basket and the liquid falls into a 60 litre tank. An internal pump then discharges the oil, even while the machine is still collecting, so you can pump recovered oil back to the machine or into a drum without stopping to lift or tip the unit.

What each feature does for your site

  • Internal pump with 6.89 m head and 160 L/min discharge — oil is pumped out of the tank on demand, so you can return it to the machine or a drum without carrying or tipping the vacuum.
  • Simultaneous suction and discharge — the pump runs while the machine collects, so a large sump can be cleaned in one continuous job instead of stop-start emptying.
  • Reverse airflow discharge option — the discharge can also work through reversed airflow, so you have a second way to empty the tank if the pump is not needed.
  • Sieve grid basket — chips are held in the basket and liquid falls into the tank, so oil and swarf are separated as you vacuum and the chips lift out for disposal.
  • 3D Superweb polypropylene filter, 20 µm — the filter is built for oil and wet material, so suction holds up on oily loads.
  • Electric float device — suction is cut off electrically when the tank is full, so oil is kept out of the motor.
  • 3.45 kW motor, 2,500 mmH₂O and 540 m³/h — strong suction and airflow from a single phase supply, so it handles heavy chips and viscous oil from a 15 A outlet.
  • 60 litre liquid and 40 litre solids capacity — enough volume for a full sump clean on most machines, so you make fewer trips between jobs.

Choose your configuration

  • Add Oil and Water Repellent Cartridge — an extra cartridge placed over the filter that repels oil and water, so the filter and motor stay protected when the load is very oily or wet.
  • Add Oil and Chips Accessories Kit — the ø50 accessories kit that Delfin recommends for oil and chips work.

Technical specifications

  • Voltage: 230 V, 50 Hz, single phase
  • Power / current: 3.45 kW / 15 A
  • Max vacuum: 2,500 mmH₂O
  • Max airflow: 540 m³/h
  • Suction inlet: 50 mm
  • Liquid capacity: 60 litres
  • Solids capacity: 40 litres
  • Oil filter: polypropylene, 300 micron
  • Primary filter: 3D Superweb, polypropylene 20 µm, 500 mm diameter, 19,200 cm²
  • Oil and water proof cartridge: optional
  • Discharge system: internal pump, or reversed airflow
  • Pump head / flow: 6.89 m / 160 L/min
  • Float device: electrical
  • Noise level: 76 dB(A) (EN ISO 3744)
  • Dimensions: 67 x 66 x 125 cm
  • Weight: 70 kg

Who it suits

CNC machine shops, metal fabricators and maintenance teams who clean machine tool sumps and want to return the oil without lifting the vacuum. For a lower cost unit with a drain valve and no pump, see the Delfin DM 40 OIL. For high volume cleaning, see the Delfin TC220.

Frequently asked questions

How does it separate oil from chips?

Chips are collected in a sieve basket inside the tank and the liquid falls through to the tank below. You lift the basket out to dispose of the chips and pump or drain the oil.

Can it pump and vacuum at the same time?

Yes. The Tecnoil range is built for simultaneous suction and discharge using its internal pump.

Can I reuse the recovered oil?

Delfin designs the Tecnoil range so the separated liquid can go back into the machine. Check with your machine manufacturer that the oil or coolant is suitable for reuse before you do.

Do I need the oil and water repellent cartridge?

It is optional. It is worth adding if you regularly collect very oily or wet material and want extra protection for the filter and motor.

What is the difference between the TC100 and the DM 40 OIL?

Both have a 60 litre liquid tank and the same motor. The TC100 adds an internal pump, a 3D Superweb filter and a 50 mm inlet. The DM 40 OIL empties through a drain valve and has an 80 mm inlet.

What power supply does it need?

It runs on 230 V single phase and draws 15 A, so it needs a 15 A circuit.

How much does freight cost?

At 70 kg this machine ships as freight. Send us your delivery postcode and we will quote it.
